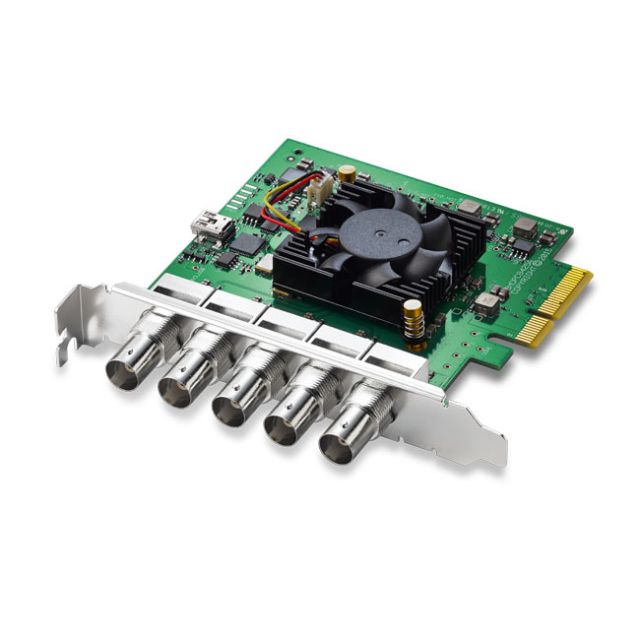

Blackmagic Design DeckLink Duo 2

by Blackmagic Design
$495.00

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.

  • SD/HD/3G-SDI Input/Output
  • PCI-E Interface
  • 1080p 4:4:4 by Single-Link 3G-SDI
  • 10/12-Bit Processing



I/O 4 x Bi-directional SDI BNC
1 x Sync BNC input
Interface PCI-E x4
Format Support 1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94
NTSC
PAL
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
Sampling Video: 4:2:2, 4:4:4
Audio: 24-bit, 48 kHz
Color Precision 8, 10-bit YUV 4:2:2
8, 10, 12-bit RGB 4:4:4
Color Space REC 601, REC 709
OS Compatibility Mac OS 10.9, 10.10, 10.11 or newer
Microsoft Windows 7, 8, 10
Linux
