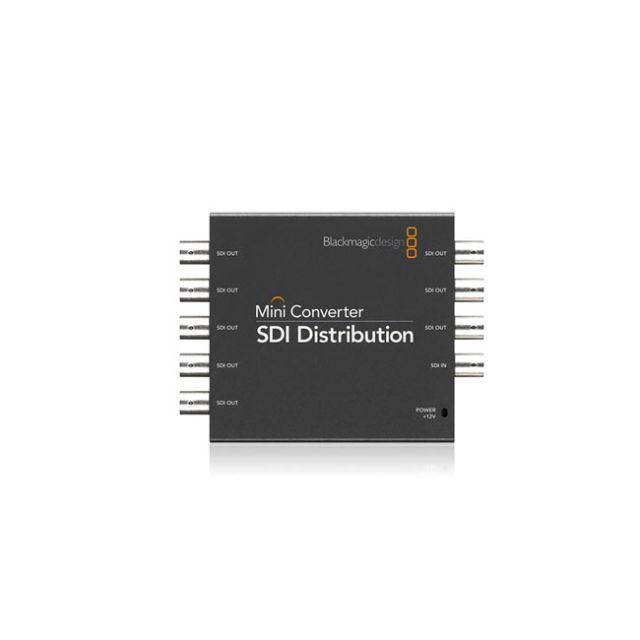

Blackmagic Design Mini Converter - SDI Distribution
The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
|Inputs||1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI|
|Outputs||8x SDI: Automatically match the SDI video input|
|Supported Formats||NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF|
|SDI Compliance||SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M|
|Video Sampling||4:2:2 and 4:4:4|
|Audio Sampling||Television standard sample rate of 48 kHz and 24-bit|
|Color Precision||4:2:2 and 4:4:4|
|Color Space||YUV and RGB|
|Power Supply||12V universal power supply included|
|Power Consumption||110V: 40mA
|Package Weight||1.1 lb|
|Box Dimensions (LxWxH)||5.6 x 5.4 x 2.6"|
