Blackmagic Design URSA Viewfinder

by Blackmagic Design MFG# BMD-CINEURSANEVFP
$1,495.00

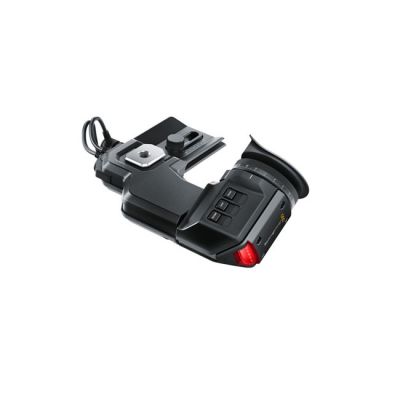

Blackmagic URSA Viewfinder





Blackmagic URSA Viewfinder

Technical Specifications

Description

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digtal focus chart!

Connections

SDI Video Inputs

1 x 3G-SDI BNC.

Power Input

1 x 4 pin XLR 12V.

Computer Interface

USB 2.0 Mini-B port for software updates.

Features

Display Resolution

Full 1920 x 1080.

Frame Rate

Up to 60fps

Display Type

OLED

Display Pixels

6.22 Million Pixels

Color Precision

24 bit RGB, 16.7 million colors

Focus

4 Element diopter.

Diopter Range

-4 to +3

Controls

Buttons for settings, short cut features and navigating menus.

Overlays

Built in overlay display processor and top mounted buttons.

Eyepiece

Can be tilted vertically and extended for left or right eye use.

Tally

LED tally light.

Mounting Options

Camera mount with adjustment.

Metadata Support

Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.

Operating Systems

Mac icon

Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.

Windows Icon

Windows 8.1 or Windows 10.

Power Requirements

12V power input via 4 pin XLR connected via 12v power output.

Physical SpecificationsBlackmagic URSA Viewfinder

Warranty

12 Month Limited Manufacturer’s Warranty.
