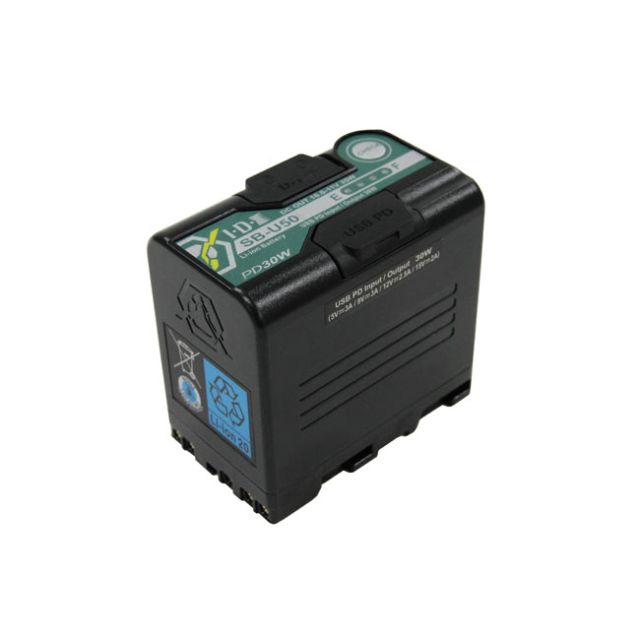

IDX 48Wh 14.4V Li-ion Battery for Sony BP-U Series with 1x D-Tap and USB

by IDX MFG# IDX-SB-U50-PD
$169.00

IDX 48Wh 14.4V Li-ion Battery for Sony BP-U Series with 1x D-Tap and USB

Extra high-capacity 14.4V Lithium Ion battery for Sony U-type mount cameras FS5, FS7, FX9, PMW series camcorder, and more.
* Minutes displayed in the viewfinder may not be accurate on some Sony cameras, LED on the battery should be used to monitor the remaining capacity.



Charge Time (h:mm)

Charger

1 ch

2 ch

Sony BC-U1A

1:45

NA

MOTIX MC-2U

2:15

calculating



Tech Specs

Capacity:

48Wh (14.4V/ 3.3Ah)

Max Output Voltage:

16.8V DC

Nominal Voltage:

14.4V DC

Max Discharge Current:

3.2A‡

D-Tap:

35W each

USB:

DC 5.0V /2.3A

End Voltage:

11V

Battery Protection:

Over charge, Over discharge, Over current

Ambient Temperature:

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 122°F (one month)

Dimensions:

1.63(W) x 2.6(H) x 2.74(D) inches

Weight:

0.6 lbs approx.



‡ may vary depending on the operating temperature
