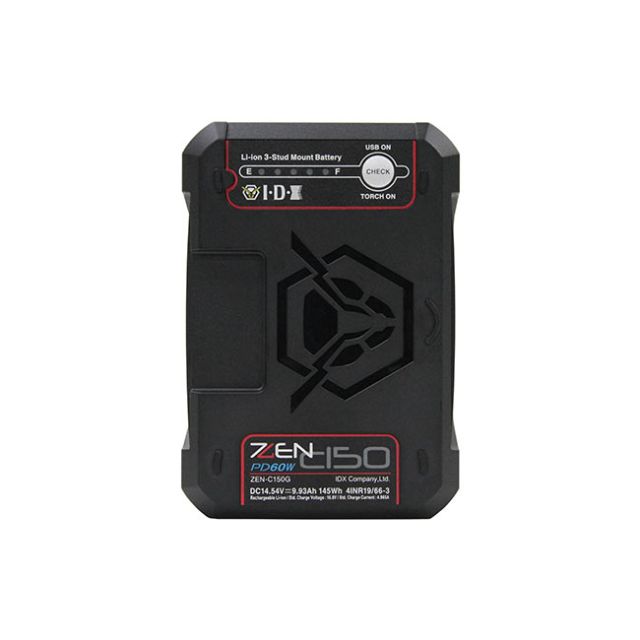

IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 145Wh Cube style Battery Pack
IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 145Wh Cube style Battery Pack
The ZEN-C150G Three Stud Mount battery line, the ZENITH Series. The ZEN-C150G provides a robust 145Wh capacity with the ability to handle max. draw at 15.2A/168W loads, as well as two built-in D-Tap outputs capable of taking a 80W load for powering common on-board accessories. USB-C PD (Power Delivery) port for two way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. An antiviral and antimicrobial body for hygienic peace of mind.
Â
Tech Specs
|
Capacity: |
145Wh (14.5V/ 9.9Ah) |
|
Max Output Voltage: |
16.8V DC |
|
Nominal Voltage: |
14.54V DC |
|
Max Discharge Current: |
15.2A‡ |
|
D-Tap: |
80W each |
|
USB-C PD: |
Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A) |
|
End Voltage: |
11V |
|
Battery Protection: |
Over charge, Over discharge, Over current |
|
Ambient Temperature: |
To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: 32°F ~ 104°F (three months) |
|
Dimensions: |
3.46(W) x 4.96(H) x 3.29(D) inches |
|
Weight: |
2.05 lbs approx. |
|
 |
‡ may vary depending on the operating temperature |
