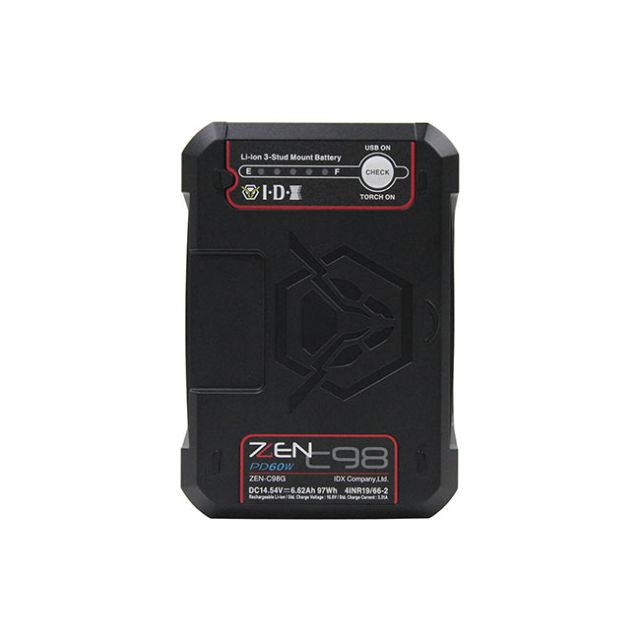

IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 97Wh Cube style Battery Pack
IDX Li-ion Three Stud Battery with 2x D-Taps & USB-C 97Wh Cube style Battery Pack
The ZEN-C98G 3-Stud Mount battery line, the ZENITH Series. The ZEN-C98G provides a robust 97Wh capacity with the ability to handle max draw at 12.7A/140W loads, as well as two built-in D-Tap outputs capable of taking a 80W load for powering common on-board accessories. USB-C PD(Power Delivery) port for two way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. An antiviral and antimicrobial body for hygienic peace of mind.
 Â
Tech Specs
|
Capacity: |
97Wh (14.5V/ 6.6Ah) |
|
Max Output Voltage: |
16.8V DC |
|
Nominal Voltage: |
14.54V DC |
|
Max Discharge Current: |
12.7A‡ |
|
D-Tap: |
80W each |
|
USB-C PD: |
Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A) |
|
End Voltage: |
11V |
|
Battery Protection: |
Over charge, Over discharge, Over current |
|
Ambient Temperature: |
To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: 32°F ~ 104°F (three months) |
|
Dimensions: |
3.46(W) x 4.96(H) x 2.70(D) inches |
|
Weight: |
1.54 lbs approx. |
|
 |
‡ may vary depending on the operating temperature |
