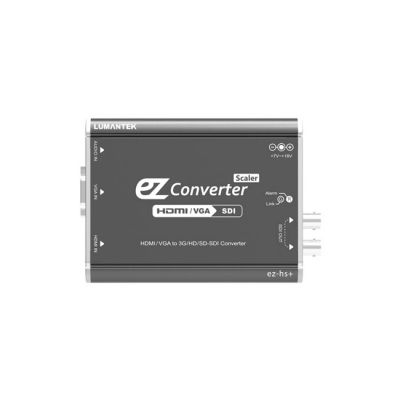

Lumantek HDMI/VGA to 3G/HD/SD-SDI Converter with Scaler

by Lumantek MFG# LUM-ez-Converter HS+
$269.00

Lumantek HDMI/VGA to 3G/HD/SD-SDI Converter with Scaler

















































































































































Parameter



Units



Min.



Typ.



Max.



 Video Formats



HDMI



VGA



- 720x480i@59.94/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@
  23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60



 - 640x480p@60/72/75/85
 - 800x600p@60/56/72/75/85
 - 1024x768p@60/70/75/85
 - 1152x864p@75
 - 1280x720p@50/60
 - 1280x768p@60@60RB
 - 1280x800p@60
 - 1280x960p@60
 - 1280x1024p@60/75
 - 1360x768p@60
 - 1440x900p@60
 - 1400x1050p@60/75
 - 1600x1200p@60
 - 1680x1050p@60
 - 1920x1080i@50/60
 - 1920x1080p@24/50/60
 - 1920x1200p@60



 Audio



 - 3.5mm Stereo Jack x 1



-















 HDMI



 - Connector (1 Port)



-



Type A



 VGA



 - Connector (1 Port)



-



D-SUB 15 female



 Output Electrical Specifications








Parameter



Units



Min.



Typ.



Max.



Video Formats



- 720x480i@59.94
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@
  23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60



-



-



-





 Audio Output



 - 48KHz



-















 SDI Output



 - Connector (2 Port)



-



75ohm, 2 x
BNC type female



 General Specifications



Parameter



Units



Min.



Typ.



Max.



Operating Temperature



 â„ƒ



0







50



Relative humidity



%



0




90



DC Input power



V



5







18



Lowest Power Consumption



W











2.52



Dimensions



mm



146.1x98.8x28.4
(include connector)



Weight



g







297
