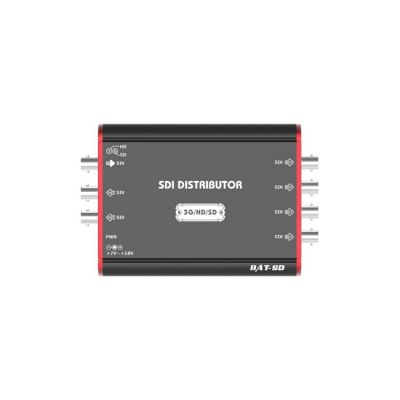

Lumantek Mini Converter BAT Series - SDI 6* Distributor
Lumantek Mini Converter BAT Series - SDI 6* Distributor
|
Input Electrical Specifications |
 |  |  |  | |
|
Parameter |
Min. |
Max. |
Units |
Typ. |
|
|
SDI Input Cable Lengths |
SD-SDI (Belden 1694A) |
250 |
　 |
m |
　 |
|
　 |
HD-SDI (Belden 1694A) |
170 |
　 |
m |
　 |
|
　 |
3G-SDI (Belden 1694A) |
155 |
　 |
m |
　 |
|
RF Input |
Connector (1 Port) |
75ohm, 1 x BNC type female |
|||
|
Display |
Input SDI Detect |
SD(Green), HD/3G(Yellow) |
|||
| Â | Â | Â | Â | Â | Â |
|
Output Electrical Specifications |
 |  |  |  | |
|
Parameter |
Min. |
Max. |
Units |
Typ. |
|
|
Rise/Fall time |
SD-SDI : rise/fall time(20-80%) |
　 |
　 |
ps |
600 |
|
　 |
HD-SDI : rise/fall time(20-80%) |
　 |
　 |
ps |
100 |
|
　 |
3G-SDI : rise/fall time(20-80%) |
　 |
　 |
ps |
100 |
|
Peck to Peck Voltage Swing |
SD/ HD/ 3G-SDI |
720 |
880 |
mVpp |
800 |
|
Overshoot/Undershoot |
SD/ HD/ 3G-SDI |
-10 |
+10 |
% |
　 |
|
RF Input |
Connector (1 Port) |
75ohm, 1 x BNC type female |
|||
| Â | Â | Â | Â | Â | Â |
|
Output Electrical Specifications |
 |  |  |  | |
|
Parameter |
Min. |
Max. |
Units |
Typ. |
|
|
DC Input power |
7 |
18 |
V |
　 |
|
|
Lowest Power Consumption |
　 |
2 |
W |
　 |
|
|
Dimensions |
131 x 99 x 28.4 (except connector) mm |
||||
|
Weight |
370 g |
||||
