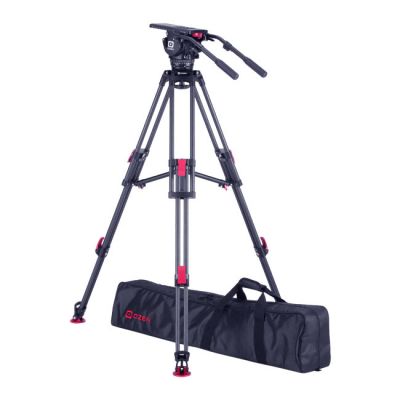

OZEN 20CF2HD 100mm AGILE 20 E-Z LOAD Tripod System
OZEN 20CF2HD 100mm AGILE 20 E-Z LOAD Tripod System
Counterbalance
(16) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.
AGILE 20/20S enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 4-28kg (8.8-61.6lbs).
Fluid Drag
AGILE 20/20S features a 9/9 + 0 fluid drag mechanism, which is incrementally adjustable and repeatable. The smooth, uniform fluid drag neither deviates nor deteriorates over time and usage. ​
The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.
Camera Mounting Interface
E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.
Ergonomics and Compatibility
Experienced operators will appreciate:
-- the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,
-- distinguishable 90 degree-opposed pan & tilt brakes,
-- replaceable pan bar rosettes for longer fluid head usability,
-- an illuminated bubble-level and spare camera plate screws,
-- and many other use-friendly features.
They're all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory'.
Weight: 5.98KG (13.1lbs)
Counterbalanced Payload: 4-28kg (8.8-61.6 lbs)
Counterbalance Increments: 16
Pan/tilt Fluid Drag Increments: 9/9+0
Tilt Range: +90°/-80°
Mounting Base: 100 mm
Operating Temperature: -40/+60 °C
Bubble Level: Illuminated
Pan bar: (2) telescopic pan bar included
100CF2HD
100mm 2-stage heavy duty carbon fiber tripod for heavy payload/high fluid drag applications
- 99 lbs (45kg) payload capacity.​
- 22mm-diameter tubes are far lighter & stiffer than aluminum,​
- less flex when using high increment of fluid drag​
- Carbon fiber resists damage from minor impacts​
- Leg tubes are pinned to their joints – not glued​
- Conspicuous red flip-type brake levers for fast deployment & stowage.​
- Features unique brake adjustment mechanism​
- CONTENDER heavy-duty 2-position (flat & angled) mid-level spreader – INCLUDED AT NOT EXTRA COST.​
- Deep tread rubber feet for better traction on smooth surfaces – INCLUDED AT NOT EXTRA COST.​
- 10.9 lbs. / 4.98kg. carry-weight​
- 22” - 57” / 57 – 154 cm height range
