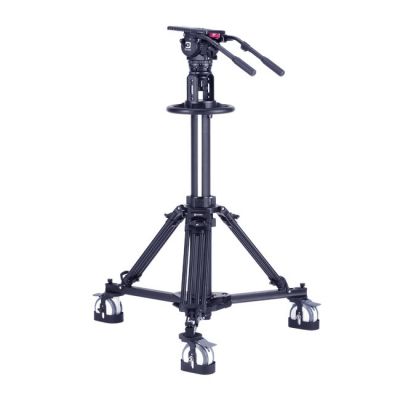

OZEN 20PED40 100mm AGILE 20 E-Z LOAD Tripod System with PED50 Pedestal

OZEN 20PED40 100mm AGILE 20 E-Z LOAD Tripod System with PED50 Pedestal

AGILE 20 (E-Z LOAD) 100mm fluid head w/2 extending pan bars + PED50 Light Studio Pedestal (includes DOLLY HD)

Ball Size

100mm (100FLATBASE adapter is required)

Payload Range

8.8-61 lbs (4-28 kg)

Accessories Included

2 extending pan bars + PED50 Light Studio Pedestal (includes DOLLY HD)

Fluid Head
AGILE 20

100mm fluid head, S-LOC, 9/9+0 increments fluid resistance, (16) increments counterbalance, (2) extending pan bars, illuminated bubble balance

 Ball Size

100mm

 Camera Mounting Interface

E-Z LOAD

Payload Range

8.8-61 lbs (4-28 kg)

Counterbalance Increments

16

Pan/Tilt Drag Increments

9/9+0

Tilt Range

+90Ëš/-80Ëš

Tripod
PED 50

PED 50 Light Studio Pedestal w/15" on-air stroke -- for use with Flat base, 150mm, or 100mm fluid heads -- includes DOLLY HD heavy-duty studio dolly w/precision asimuth-tracking wheels & cable guards

Payload Range

0-110 lbs. (0-50 kg)

Fluid Head Mounting Interface

Accepts industry-standard 4-bolt Flatbase, and also accepts OZEN's 100FLATBASE and 150FLATBASE adapters to accommodate 100mm and 150mm ball-based fluid heads, respectively.

On-air stroke

15
