OZEN 25PED50M AGILE 25M 150/FB E-Z LOAD MAX Tripod System
OZEN 25PED50M AGILE 25M 150/FB E-Z LOAD MAX Tripod System

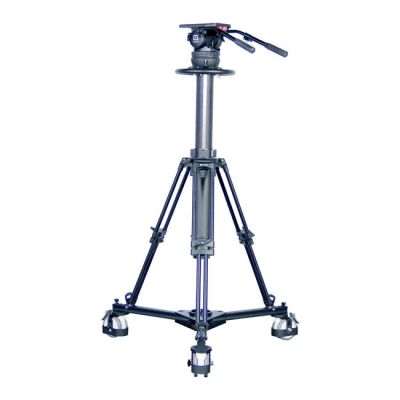

AGILE 25M (E-Z LOAD MAX) 150mm/4-bolt Flatbase fluid head with 2 extending pan bars and PED50 Light Studio Pedestal (includes DOLLY HD)
150Flatbase Aadaptershown in image, but is unnecessaryfor this system. Boththe AGILE 25M Fluid Headand PED50 are industry-standard 4-boltflatbase-compatible.
Payload Range
8.8-75 lbs (4-34 kg)
Accessories Included
2 extending pan bars + PED50 Light Studio Pedestal (includes DOLLY HD)
Fluid Head
AGILE 25M
150mm/4-bolt Flatbase-convertible fluid head, E-Z LOAD MAX, 9/9+0 increments fluid resistance, (16) increments counterbalance, (2) extending pan bars, 'build' lock, illuminated bubble balance
Ball Size
150mm / 4-bolt Flatbase convertible
Camera Mounting Interface
E-Z LOAD MAX
Payload Range
8.8-75 lbs (4-34 kg)
Counterbalance Increments
16
Pan/Tilt Drag Increments
9/9+0
Tilt Range
+90Ëš/-80Ëš
Tripod
PED 50
PED 50 Light Studio Pedestal w/15" on-air stroke -- for use with Flat base, 150mm, or 100mm fluid heads -- includes DOLLY HD heavy-duty studio dolly w/precision asimuth-tracking wheels & cable guards
Payload Range
0-110 lbs. (0-50 kg)
Fluid Head Mounting Interface
Accepts industry-standard 4-bolt Flatbase, and also accepts OZEN's 100FLATBASE and 150FLATBASE adapters to accommodate 100mm and 150mm ball-based fluid heads, respectively.
On-air stroke
15
