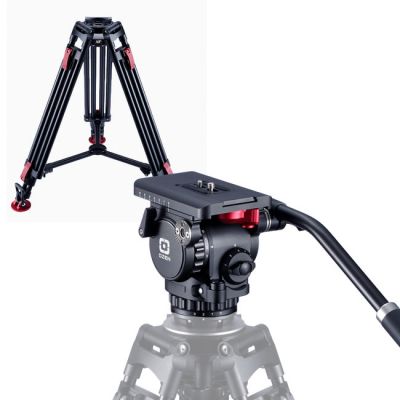

OZEN 8CF2HD 75mm AGILE 8 E-Z LOAD Tripod System

OZEN 8CF2HD 75mm AGILE 8 E-Z LOAD Tripod System

System 8CF2HD 75mm AGILE 8 + 75CF2HD w/MLS100 mid-level spreader & deep-tread rubber feet + Softcase 100

75mm affordability delivering 100mm-class capability & features.

Counterbalance

(10) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.

AGILE 8 enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 1-10kg (2.2-22 lbs).

Fluid drag

AGILE 8 features a 5/5 + 0 "TRUE" fluid drag mechanism, which is incrementally adjustable and repeatable for fast setting.

It makes broadcast level footage attainable by delivering smooth and uniform drag that neither deviates nor deteriorates over time and usage.

The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.

Camera Mounting Interface

AGILE 8 offers the choice of two industry-standard camera mounting interfaces enable seamless integration with nearly any brand of camera support already in use.

AGILE 8 with E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.

Ergonomics and compatibility

Experienced operators will appreciate:

• the familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls,



• distinguishable 90 degree-opposed pan & tilt brakes,



• replaceable pan bar rosettes for longer fluid head usability,



• an illuminated bubble-level and spare camera plate screws,



• and many other use-friendly features.

They' re all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory”.



Tech Specs:



E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.



Weight: 7.17 Lbs



Counterbalanced Payload: 1-10kg (2.2-22 lbs)



Counterbalance Increments: 10



Pan/tilt Fluid Drag Increments: 5/5+0



Tilt Range: +90°/-80°



Mounting Base: 75 mm



Operating Temperature: -40/+60 °C



Bubble Level: Illuminated



Pan Bar: (1) telescopic pan bar included







75CF2HD



100mm 2-stage carbon fiber tripod for use with 75MM Mount

• 25 kg / 55 lbs. payload capacity



• Beautifully molded leg tubes are pinned to their joints – not glued.



• Hi-visibility flip lock-type brakes are operator-adjustable for wear



• MLS100 mid-level spreader & deep-tread rubber feet - INCLUDED AT NOT EXTRA COST.



• 8.88 lbs. / 4.04 kg. transport-weight



• 24 - 65” / 62 – 165cm minimum/maximum height range with CONTENDER



• 24 - 61” / 62 – 154cm minimum/maximum height range with MLS100 mid-level spreader
