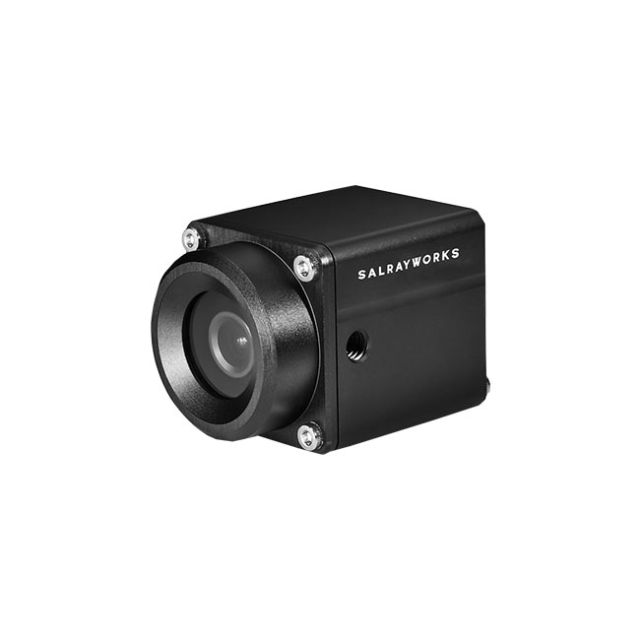

Salrayworks raySHOT 1/2.8'' Exmor R CMOS Sony IMX327 Ultra Latency POV Camera

by Salrayworks MFG# SRW-raySHOT-UltraLatency
$678.08

Salrayworks raySHOT 1/2.8'' Exmor R CMOS Sony IMX327 Ultra Latency POV Camera

1/2.8"  Exmor R CMOS  new SONY IMX327 sensor Weather-proof ( IP67 ), 1/2.8" Exmor R CMOS sensor, 3G-SDI, CVBS outputs, Audio in, IR remote, RS-422 control ( SDI :1920x1080p59.94, 1920x1080i59.94, 1920x1080p29.97, 1280x720p59.94, 1280x720p29.97

1920x1080p50/60, 1920x1080i50/60, 1920x1080p25/30, 1280x720p50/60, 1280x720p25/30 )  Ultra Low Latency 15 ms

Key Features:

  • Ultra Low Latency 0-15 ms video delay
  • Resolution 1920×1080
  • Lens 4.3mm
  • Output 3G-SDI,CVBS
  • Protocol / Communication
  • VISCA, PELCO-D/P, RS-422/485
  • Multi-input Audio/IR remote
  • Dimension 43 x 43 x 60 mm (WxHxD)
  • Patented Camera OSD
  • Weather Proof IP 67

Ultra Low Latency Camera

Interactive  broadcasting, which is an increasing trend these days, requires viewers to participate and intervene in broadcasting in near real-time, such as Games, Stocks, etc. If the latency of 3 seconds as in existing broadcasting, people suffer from discomfort and will not even use it. So this service cannot keep going.

Full HD image quality with 60fps frame rate

1920×1080 60p/59.94p

See every presenter or conference participant more clearly. The 1/2.8-type Exmor R CMOS image sensor captures smooth, crisply detailed, Full HD (1920 x 1080 60p/59.94p) images with extremely low noise – even in low light conditions where other cameras struggle. High frame rate (60/59.94fps) operation ensures smoother, more fluid reproduction of moving subjects.

Applicable with various lens 2.9mm/4.3mm

We provide a default lens that has an angle of view of 120°/80°. However, in case any other type of lens is required, it can be supported(other lens should be additionally purchased).

Multi-format output video

with 3G-SDI,CVBS

The POV VWS series can simultaneously output 1080/60 or 59.94p baseband video through 3G-SDI.  Also, it supports CVBS so that our customers can easily set up with it. This capability makes the camera ideal for simultaneous recording of conferences, lectures, seminars and other live events.

Versatile connectivity options

VISCA, PELCO-D/P, RS-422/485

Support for RS-422 and 485 communication allows easy connection with a wide range of peripheral products. The camera can also be controlled via VISCA, PELCO-D/P protocols.

Protection from water, dust, dirt and sand by IP 67 weather proof

Weatherproof IP67 rated Housing for outdoor applications. Water protection submerged up to 1m (3.2′) – total protection against dust, dirt, sand
