Azden Professional Portable Mixer with 3 XLR Inputs

Azden Professional Portable Mixer with 3 XLR Inputs

by Azden MFG# AZDEN-FMX-32a
$640.00

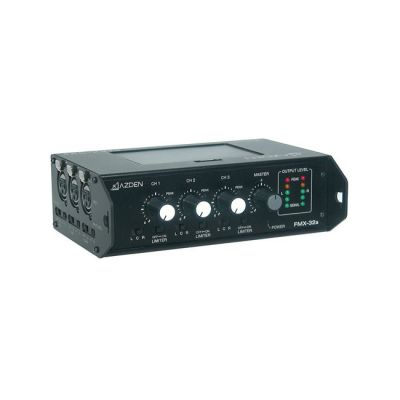

Azden Professional Portable Mixer with 3 XLR Inputs

New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-“AA”) mixer can be attached directly to the camera with supplied hook-and-loop fastener. The FMX-32a has the following features: 3 XLR microphone inputs, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel panning switches (L-C-R), stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.

Frequency Response

      • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
      • Monitor Output: 50-17,000Hz (-3dB)

Noise Level

      • Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
      • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

MIC Input Level

      • LO -20 dBu Gain -6Db
      • HI -3dBu Gain +45Db

Monitor Output

      • 3.5mm Stereo: -4dBu (32 ohm load)
      • (Recommended load 16-100 ohms)


Maximum Output Level



    • Balanced Output: +20dBu (5K ohms)

    • Unbalanced Output (3.5mm) -19dBu (2K ohms)



Battery Type/Duration

    • 6 – AA Alkaline – 15 hours


Current Drain



    • 47mA nominal (Phantom Power Off)

    • 100mA maximum (Phantom Power On)


Phantom Power



    • Voltage: 48VDC (+/- 4VDC)


Dimensions



    • Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)

    • Weight w/o Battery: 26.45 ounces (750 grams)
