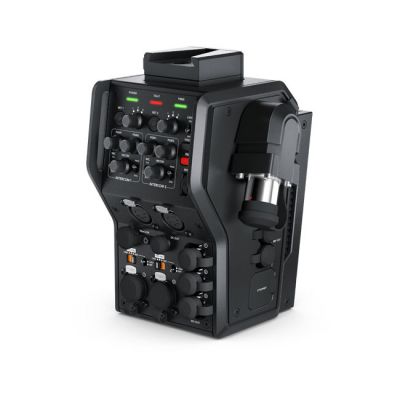

Blackmagic Design Camera Fiber Converter

by threeriversvideo.com
$2,995.00

Designed for High End Broadcast

Durable metal design, high end components and professional connections

The Blackmagic Camera Fiber Converter features an extremely durable all metal design that perfectly matches URSA Broadcast, URSA Mini cameras or any camera that supports a standard battery plate. It’s built to withstand the harsh demands of outdoor field production and 24/7 operation. The Blackmagic Camera Fiber Converter features full size standard television industry connections with dust caps, along with an integrated VLock mount plate on top for adding a studio viewfinder. The Blackmagic Studio Fiber Converter is designed so that you can fit two of them side by side in a standard equipment rack using the optional rack mount kit. The optical fiber connector on the Blackmagic Studio Fiber Converter is conveniently located on the front panel, right next to the built in 5 inch LCD, so you can plug remote cameras in and instantly see the feed!

Connections

Optical Fiber Input

1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male).

SDI Video Input

1x 12G SDI for Camera feed.

SDI Video Output

1x 12G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs.

Talkback Audio

2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output.

Analog Audio

2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available.

Computer Interface

1x USB-C connector.

Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.

Audio Sampling

Television standard sample rate of 48Khz, 24 bit A/D conversion.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709, REC 2020.

Multiple Rate Support

SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

Software

Software Included

Camera Utility for firmware update.

Operating Systems

Mac Icon

Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra or later.



Windows Icon

Windows 8.1 or Windows 10.

What's Included

Blackmagic Camera Fiber Converter

Mounting Bracket and screws for attaching to URSA Mini and URSA Broadcast cameras

3x Short 12G SDI cables for SDI In and Out connectiong to URSA Mini and URSA Broadcast

SD card with software and manual
