Blackmagic Design Intensity Pro 4K

by Blackmagic Design MFG# BMD-BINTSPRO4K
$235.00

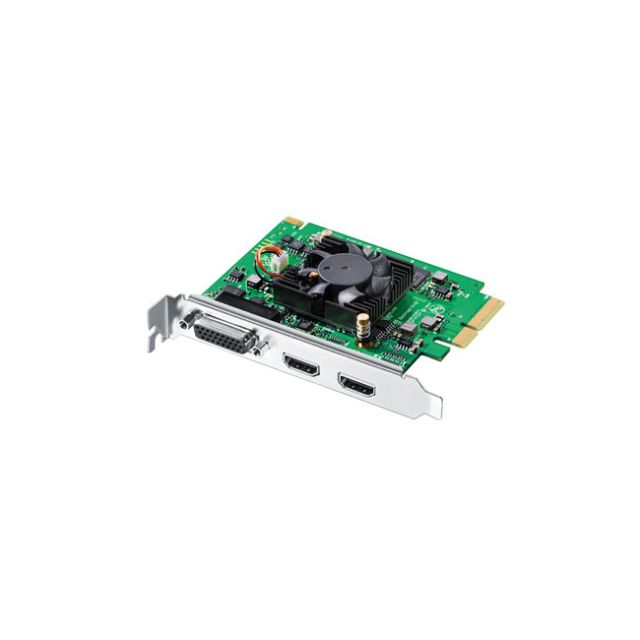

Blackmagic Intensity Pro 4K



Intensity Pro 4K lets you capture and playback on PCIe Mac, Windows and Linux computers. Featuring HDMI and analog breakout connections, Intensity Pro 4K works with NTSC/PAL, HD and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve Lite and Media Express software are included free so you get professional editing, grading and media management without having to buy extra software!





Connections


HDMI Video Input


1 x HDMI type A connector.



HDMI Video Output



1 x HDMI type A connector.



HDMI Audio Input



8 Channels embedded in SD, HD and Ultra HD.



HDMI Audio Output



8 Channels embedded in SD, HD and Ultra HD.


Analog Video Input


Component, Composite or S-Video.



Analog Video Output



Component, Composite or S-Video.



Analog Audio Input



2 Channel RCA HiFi audio in 24-bit.



Analog Audio Output



2 Channel RCA HiFi audio in 24-bit.


SPDIF Audio Output


2 Channel 24-bit.



Multiple Rate Support



HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.



Computer Interface



PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.





Standards


SD Format Support


625i/50 PAL and 525i/59.94 NTSC, 480p



HD Format Support



720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.



Ultra HD Format Support



2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.


HDMI Video Sampling


RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.



HDMI Audio Sampling



Television standard sample rate of 48kHz and 24-bit.



Color Space



REC 601, REC 709.


HDMI Color Precision


10-bit



HDMI Configuration



HDMI 1.4b supports Deep Color and automatically configures to connected display.



Copy Protection



HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.


Processing


UHD/HD Down Conversion


Software based down conversion during video playback.



HD Up Conversion



Real time SD to 1080HD and 720HD during video capture.


Real Time Effects


Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.


Software


Software Included


DaVinci Resolve Lite, Media Express, Disk Speed Test, Blackmagic Desktop Video.


Internal Software Upgrade


Firmware built into software driver. Loaded at system start or via updater software.


Operating Systems





Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.





Windows 7 or Windows 8.






Linux



Physical Specifications





Physical Installation


PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux. Please check the Support pages to see the full system requirements.


Environmental Specifications


Operating Temperature


5° to 40° C (32° to 104° F)


Storage Temperature


-20° to 45° C (-4° to 113° F)


Relative Humidity


0% to 90% non-condensing


What's Included


Intensity Pro 4K


Software SD card.


Breakout Cable


Warranty


12 Months Limited Warranty.
