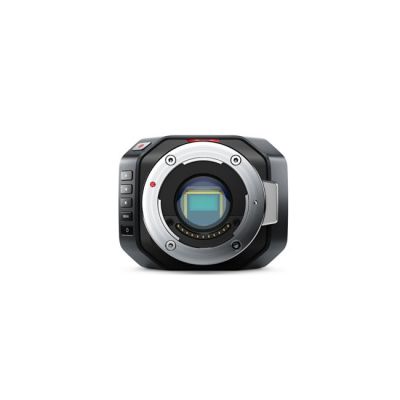

Blackmagic Micro Cinema Camera
The world’s smallest digital film camera with innovative remote control!
Introducing the Blackmagic Micro Cinema Camera, a miniaturized Super 16mm, professional digital film camera that is designed to be operated remotely and capture action anywhere! A revolutionary built in expansion port has PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Imagine adjusting focus, iris and zoom wirelessly! The Micro Cinema Camera is a true digital film camera that features built in RAW and ProRes recording, 13 stops of dynamic range and an MFT lens mount. You get a true digital film camera that can go where no other digital film camera can!
Get Incredible Action Shots
The digital film camera for action camera shots
The Blackmagic Micro Cinema Camera is an impossibly small true, professional quality digital film camera that’s perfect for use on quadcopters, as a crash cam, or even hidden on set for reality TV. You can mount it anywhere such as on a skate board or hang glider for spectacular extreme sports shots, to a drone to record panoramic fly overs, or even wear it on a helmet for the most amazing point of view shots! The Blackmagic Micro Cinema Camera will make your audience say “Wow! How did they get that shot?”
Extremely Customizable Design
The world’s smallest completely open and customizable camera
The design of the Blackmagic Micro Cinema Camera combines advanced miniaturization and a unique expansion port in a digital film camera that lets you create personalized rigs for remote operation and monitoring. The camera body is not much larger than the Micro Four Thirds lens mount making it as small as a camera with a professional lens can be. Its core is made out of a lightweight and strong magnesium alloy that makes it durable enough to shoot anywhere, from the ocean floor to the stratosphere or beyond! You can control the Micro Cinema Camera directly from the front buttons when it’s mounted, or remotely when it’s out of reach.

Blackmagic Micro Cinema Camera
Technical Specifications
Description
The world’s smallest digital film camera with Super 16mm sensor and 13 stops of dynamic range that is designed to be operated remotely! Features a revolutionary expansion port with PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Includes a built in SD card recorder for capturing up to 1080HD in CinemaDNG RAW or ProRes, MFT lens mount and operates up to 60 fps.
Camera Features
Effective Sensor Size
12.48mm x 7.02mm (Super 16)
Lens Mount
Active MFT mount.
Lens Control
Iris, focus and zoom on supported lenses.
Dynamic Range
13 stops.
Shooting Resolutions
1920 x 1080
Frame Rates
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Focus
Remote focus control via expansion connector when using compatible lenses.
Iris Control
Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses.
Controls
6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector.
Mounting Options
1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
Connections
Total Video Inputs
None
Total Video Outputs
1 x HDMI Type A, 1 x Composite Video output.
Analog Audio Inputs
1 x 3.5mm stereo jack, mic or line level. Can also be used for timecode input.
Analog Audio Outputs
1 x 3.5mm stereo headphone jack
Reference Input
Tri-Sync or Black Burst on expansion connector.
Expansion Port
DB-HD15 serial connector provides support for:
Power input
LANC input
1 x S.Bus input
4 x PWM channel input
Reference input
Composite video output
Remote Control
Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels
Computer Interface
USB 2.0 Mini-B port for software updates.
Audio
Microphone
Integrated stereo microphone.
Standards
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Codecs
CinemaDNG RAW, CinemaDNG RAW 3:1, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT
QuickTime, ProRes Proxy QuickTime.
Media
Media
SDXC and SDHC cards.
Media Format
Media Format can format cards to HFS+ for Mac or exFAT for Windows.
Control
External Control
Expansion connector has LANC, S.Bus and PWM for lens and other settings control.
Storage Features
Storage Type
Removable SDXC and SDHC cards
Storage Format
Mac OS Extended or exFAT format. SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended.
Storage Rates
1920 x 1080
CinemaDNG RAW - 65 MB/s
CinemaDNG RAW 3:1 - 33 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Rates based on 30 frames per second.
Recording Formats
Lossless CinemaDNG RAW, RAW 3:1 at 1920 x 1080 with film dynamic range.
Apple ProRes 422 HQ, 422, 422 LT and 422 Proxy at 1920 x 1080 with either film or video dynamic range.
Software
Software Included
DaVinci Resolve grading software. SD card for Mac and Windows.
Operating Systems
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Power Requirements
Battery Type
Canon LP-E6
Battery Life
Approximately 1 hour 30 minutes
Power
12V-20V
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Micro Cinema Camera
Expansion cable
LP-E6 battery
Turret dust cap
12V AC Adapter
SD card with software and manual
Warranty
12 Month Limited Manufacturer's Warranty.
