IDX System Build-Up Rig

IDX System Build-Up Rig

by IDX MFG# IDX-HDS-300S
$2,385.00

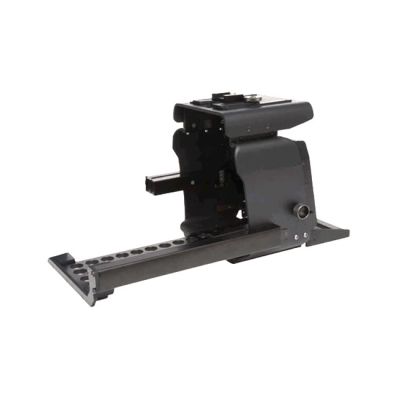

IDX System Build-Up Rig

System built-up rig helps adapt small camcorders for studio/EFP operations.
(2x BNC cables and 2 sets of 1/4 & 3/8 screws included)



Tech Specs:

Input:

DC In: 1x 4-pin XLR, V-mount plate

HD-SDI In: 1x BNC

IF In (VF In): 1x 6-pin

Output:

DC Out: 1x 4-pin XLR, 1x D-Tap, 1x Mini 4-pin (14.1V/8.4V)

HD-SDI Out: 1x BNC

Tally Out: 1x BNC (On/Off)

Return Switch Out: 1x 4-pin

Operating Temperature:

32°F～104°F

Storage Temperature:

-4°F～140°F

Dimensions:

11.3(W) x 10.2(H) x 20(D) inches

Weight:

11.7lbs approx.
